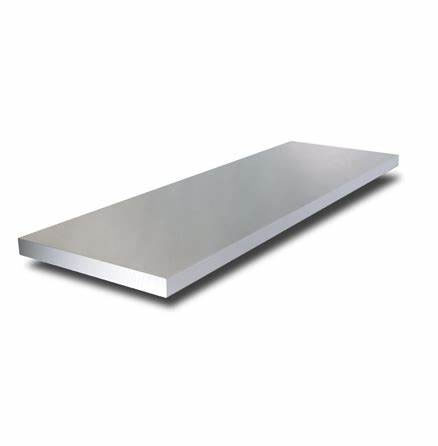

Grade 316 stainless steel, a premium, corrosion-resistant stainless steel alloy, is used to create flat bars that are rectangular in shape. The widths and thicknesses of these flat bars vary to accommodate various uses. They have a smooth surface and sharp edges. Flat bars made of stainless steel 316 have exceptional corrosion resistance, especially in settings exposed to chloride, which makes them appropriate for use in a variety of industries and applications.
When choosing stainless steel 316 flat bars, take into account the application-specific requirements, as well as the dimensions (width and thickness), length, and surface finish (such as hot-rolled, cold-drawn, or polished). Selecting the best stainless steel 316 flat bars for your requirements can be made easier by consulting with a reliable manufacturer or supplier.
| Grades: | Specialized in Stainless Steel - 316 |
| Specifications: | ASTM A240 / ASME SA240 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Thickness : | 1 mm To 100 mm |
| Diameter: | Upto 2000 mm |
| Hardness: | HRB 62 to 180 - HV 140 to 1250 |
| Cutting : | Plazma & Machined Cut |
| Finish : | HR, CR, 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Edge: | Mill Edge, Slit Edge. |
SEND US YOUR REQUIREMENT NOW
| Element | C | Cr | Mn | Ni | P | S | Si |
|---|---|---|---|---|---|---|---|
| SS 316 | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 0.03 max | 0.75 max |
| SS 316L | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
| Element | Tensile Strength | Yield Strength | Elongation | Reduction in Area | Hardness |
|---|---|---|---|---|---|
| SS | Psi – 85,000 | Psi – 45,000 | 50% | 55% | Rb 180 |
